Pipe Coating Machines Overview With Modern Coating Systems and Engineering Information
Pipe coating machines are industrial systems used to apply protective layers to the outside or inside of pipes. These machines are commonly associated with steel, ductile iron, and other industrial piping used in water systems, energy infrastructure, construction, chemical processing, and manufacturing.
The basic purpose of pipe coating is to create a protective barrier between the pipe material and its surrounding environment. Depending on the application, a coating may help reduce exposure to moisture, chemicals, abrasion, temperature changes, or other conditions that can affect pipe surfaces.

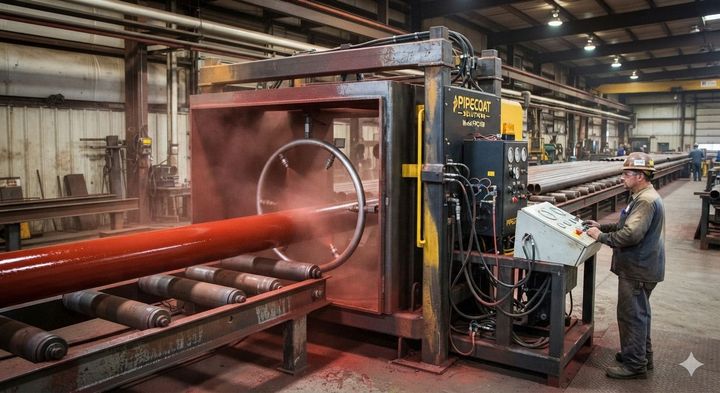

Modern pipe coating machines can range from relatively simple spray or extrusion equipment to automated production lines. A complete line may include pipe conveyors, rotating units, blasting equipment, heating systems, coating applicators, curing equipment, cooling sections, and inspection instruments.
How Pipe Coating Systems Work
A typical pipe coating process begins with surface preparation. Dirt, oil, rust, scale, and other unwanted materials are removed so that the coating can properly adhere to the pipe surface.
The prepared pipe then moves through a coating station. Depending on the material and application, the coating can be applied through spraying, extrusion, powder application, liquid application, or other controlled methods.
After application, the coating may require heating, drying, or curing. The finished pipe is then inspected for thickness, continuity, adhesion, surface defects, and other specified characteristics.
Common Pipe Coating Equipment
A modern pipe coating line may contain several connected machines and systems.
- Pipe handling systems move pipes between processing stages.
- Surface preparation equipment cleans and prepares the pipe.
- Heating units control the temperature required for coating application.
- Coating applicators distribute protective material across the surface.
- Rotating equipment helps maintain consistent coverage around cylindrical pipes.
- Curing systems provide controlled conditions for coating hardening.
- Inspection equipment identifies coating defects and variations.
- Control systems coordinate machine movement, temperature, pressure, speed, and production parameters.
Importance
Pipe coating machines matter because pipes frequently operate in environments where unprotected surfaces can experience deterioration. Underground pipelines may encounter moisture and soil conditions, while industrial pipes can be exposed to chemicals, abrasion, heat, or repeated mechanical contact.
A suitable coating system helps engineers create a controlled protective layer around the pipe. The exact coating material and process depend on the pipe material, operating environment, temperature, pressure, dimensions, and required performance characteristics.
Industries Using Pipe Coating Technology
Pipe coating technology is used across several industries and infrastructure applications.
Water and wastewater infrastructure can use coated pipes to reduce surface exposure to environmental conditions. Energy-related pipelines may use external coatings to protect metal surfaces during transportation and installation.
Construction projects can also use coated piping for underground infrastructure, drainage systems, industrial facilities, and utility networks. Manufacturing plants may use specialized internal coatings where the transported material could interact with the pipe surface.
Problems Addressed by Coating
Pipe coating systems can address several practical engineering challenges:
- Surface corrosion caused by environmental exposure
- Abrasion from contact with soil or transported materials
- Chemical interaction between pipe surfaces and surrounding substances
- Moisture penetration
- Mechanical damage during handling and installation
- Uneven coating thickness
- Inconsistent curing conditions
- Inspection difficulties on large production lines
The coating itself does not eliminate every form of pipe deterioration. Its effectiveness depends on material selection, surface preparation, application conditions, coating thickness, curing, inspection, and the operating environment.
Main Coating Methods
Different pipe coating machines are designed around different coating technologies.
| Coating method | Typical application | Main process characteristic |
|---|---|---|
| Spray coating | Liquid protective materials | Controlled spraying around the pipe |
| Powder coating | Thermoset or polymer materials | Powder application followed by heating |
| Extrusion coating | Polymer layers | Heated polymer applied around the pipe |
| Fusion-bonded coating | Steel pipe protection | Heated surface with powdered coating material |
| Multi-layer coating | High-exposure applications | Several protective layers applied sequentially |
| Internal coating | Pipe interior protection | Coating equipment positioned inside the pipe |
The selected method depends on engineering requirements rather than a single universal approach.
Recent Updates
The pipe coating machines market has increasingly incorporated automation, digital monitoring, improved material handling, and more controlled application processes. Modern production environments place greater emphasis on repeatability and process monitoring.
Automation and Digital Controls
Automated pipe coating systems can coordinate pipe rotation, movement speed, spray patterns, heating conditions, and coating application parameters. Programmable controllers and industrial sensors can collect process information and help operators identify variations during production.
Digital monitoring is also becoming more common in quality control. Sensors can track temperatures, line speeds, pressure levels, and other operating parameters, while inspection systems can help identify surface irregularities.
Improved Surface Preparation
Surface preparation remains a major part of pipe coating quality. Modern blasting and cleaning equipment is designed to provide more consistent preparation across the pipe surface.
Automated preparation can reduce variation between individual pipes by controlling factors such as abrasive flow, pipe rotation, travel speed, and preparation intensity. These controls are particularly relevant when large numbers of pipes need consistent treatment.
More Efficient Coating Processes
Recent engineering developments have focused on better control of coating thickness, material utilization, heating, and curing. Equipment manufacturers are also integrating machine monitoring and programmable process controls into complete coating lines.
Environmental considerations are influencing coating technology as well. Some production systems are designed to reduce material waste, improve recovery of process materials, and manage emissions associated with particular coating processes.
Inspection Technology
Inspection has become increasingly integrated into production workflows. Digital gauges, ultrasonic measurement systems, holiday detectors, visual inspection equipment, and automated sensing technologies can be used depending on the coating specification.
The purpose of these tools is to identify problems before coated pipes move to later stages of handling or installation.
Laws or Policies
Pipe coating machines are affected by several categories of regulations and technical requirements. The exact rules depend on the country, industry, pipe application, coating material, and project specifications.
Industrial Equipment Requirements
Industrial facilities generally need to follow workplace safety requirements covering moving machinery, electrical systems, heated equipment, compressed air, ventilation, and operator protection. Pipe coating lines can contain rotating components, high-temperature surfaces, pressurized systems, and automated machinery, making machine guarding and operating procedures important.
Environmental Requirements
Coating processes may involve powders, solvents, vapors, blasting media, or other materials that require controlled handling. Environmental regulations can address emissions, waste management, ventilation, material storage, and disposal procedures.
Requirements differ between jurisdictions and may also vary according to the type of coating used.
Technical Standards
Engineering projects frequently specify technical standards for coating preparation, application, thickness, adhesion, inspection, and testing. International standards organizations and industry bodies publish specifications that may be referenced by project engineers and manufacturers.
A project specification normally identifies which standards and testing procedures apply. Compliance therefore depends on the particular pipe application rather than one universal rule.
Tools and Resources
Several tools help people understand and manage pipe coating processes. Engineering calculators can assist with surface-area calculations, coating coverage estimates, pipe dimensions, and material quantities.
Engineering and Planning Tools
Useful resources can include:
- Pipe diameter and surface-area calculators
- Coating thickness measurement tools
- Production-speed calculators
- Temperature monitoring instruments
- Pressure and flow measurement equipment
- Coating inspection templates
- Preventive maintenance checklists
- Equipment manuals and technical datasheets
- Industrial automation documentation
- Quality-control record templates
Selecting Process Parameters
Pipe diameter, pipe length, coating type, target thickness, line speed, surface condition, and curing requirements all influence machine configuration.
For example, a large-diameter pipe may require different handling and rotation arrangements from a smaller pipe. Similarly, a powder coating process has different heating and curing requirements from a liquid spray process.
For this reason, pipe coating machines are usually configured around a defined production process rather than treated as identical equipment for every application.
FAQs
What are pipe coating machines used for?
Pipe coating machines apply protective layers to pipe surfaces. They can support external or internal coating processes and may include preparation, application, heating, curing, cooling, handling, and inspection equipment.
How does a pipe coating system work?
A pipe coating system normally prepares the pipe surface, applies a selected coating material, controls drying or curing conditions, and checks the finished layer. Automation can coordinate movement, temperature, coating thickness, and other process parameters.
What types of pipe coating machines are available?
Common types include spray coating machines, powder coating systems, extrusion coating equipment, fusion-bonded coating lines, internal coating equipment, and multi-layer pipe coating systems. The appropriate configuration depends on the coating material and application requirements.
Why is surface preparation important for pipe coating?
Surface preparation removes contaminants and unwanted surface material before coating application. A properly prepared surface can help establish the required interaction between the pipe and coating layer.
What tools are used to inspect coated pipes?
Inspection can involve thickness gauges, ultrasonic instruments, holiday detectors, adhesion testing equipment, visual inspection tools, and other measurement systems. The required method depends on the coating specification and applicable technical requirements.
Conclusion
Pipe coating machines combine material application, pipe handling, surface preparation, curing, and inspection into controlled industrial processes. Modern systems increasingly use automation, sensors, digital controls, and inspection technology to improve process consistency. Regulations and technical standards influence machine operation, environmental controls, workplace safety, and coating quality requirements. Understanding the equipment, coating methods, process stages, and inspection tools provides a useful foundation for understanding modern pipe coating technology.
